The Interpreter Design Pattern

Table of Contents​

Introduction​

The Interpreter pattern is a behavioral design pattern that defines a grammatical representation for a language and provides an interpreter to deal with this grammar. It's particularly useful when you need to evaluate sentences or expressions in a simple language.

Think of it as creating a mini-language processor that can understand and execute specific commands or expressions within your application's domain.

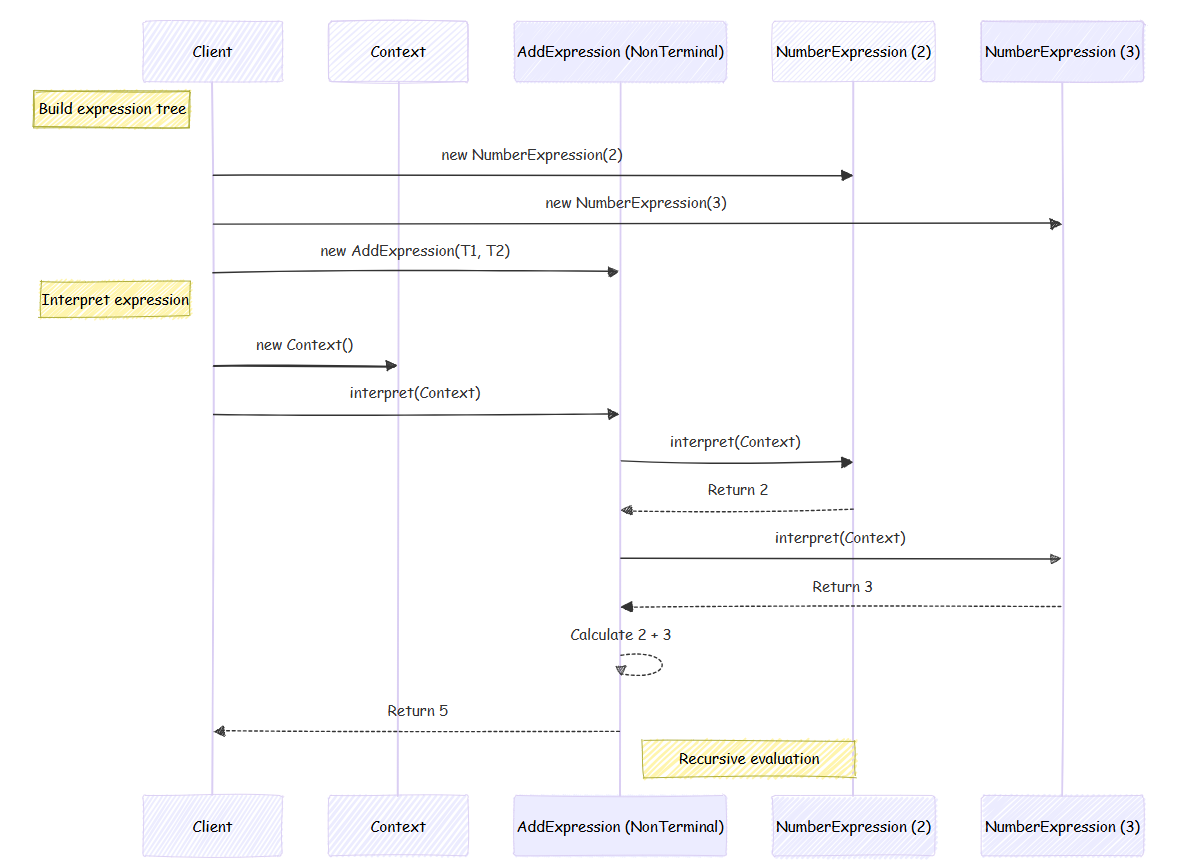

Interpreter Pattern

Understanding the Interpreter Pattern​

The pattern works by breaking down a problem into an Abstract Syntax Tree (AST) of expressions that can be interpreted. Each node in the tree represents an expression that can be evaluated within the context of the language.

Key Concepts:​

  • Grammar: The set of rules that define the language
  • Abstract Syntax Tree: The hierarchical representation of expressions
  • Context: The environment in which expressions are evaluated
  • Terminal Expressions: The leaf nodes of the syntax tree
  • Non-terminal Expressions: The composite nodes that contain other expressions

Core Components​

Abstract Expression​

  • Declares an abstract interpret operation common to all nodes in the AST
  • Defines the interface for interpreting an expression

Terminal Expression​

  • Implements the interpret operation for terminal symbols in the grammar
  • Represents the leaf nodes in the AST
  • Contains no child expressions

Non-terminal Expression​

  • Implements the interpret operation for non-terminal symbols
  • Contains and manages one or more child expressions
  • Defines behavior for composite expressions

Context​

  • Contains global information required for interpretation
  • Manages variables, values, and environmental data
  • Provides a way to share and access data during interpretation

When to Use the Interpreter Pattern​

The Interpreter pattern is most beneficial when:

  • The grammar is simple and well-defined

    • Complex grammars are better handled by parser generators
    • The rules can be represented as classes in a straightforward manner

  • Efficiency is not a critical concern

    • The pattern focuses on flexibility over performance
    • Suitable for business rules that don't require high-speed processing

  • You need to:

    • Parse and evaluate Domain-Specific Languages (DSLs)
    • Implement rule engines or expression evaluators
    • Create configurable validation rules
    • Build mathematical expression parsers

Implementation Steps​

1. Define the Grammar​

Expression ::= Number | Operation
Operation ::= Expression Operator Expression
Operator ::= '+' | '-' | '*' | '/'
Number ::= [0-9]+

2. Create the Abstract Expression​

public interface Expression {
    int interpret(Context context);
}

3. Implement Terminal Expressions​

public class NumberExpression implements Expression {
    private int number;

    public NumberExpression(int number) {
        this.number = number;
    }

    public int interpret(Context context) {
        return number;
    }
}

4. Implement Non-terminal Expressions​

public class AddExpression implements Expression {
    private Expression left;
    private Expression right;

    public AddExpression(Expression left, Expression right) {
        this.left = left;
        this.right = right;
    }

    public int interpret(Context context) {
        return left.interpret(context) + right.interpret(context);
    }
}

Real-World Examples​

1. SQL Query Parser​

  • Interpreting WHERE clauses
  • Handling JOIN conditions
  • Processing ORDER BY statements

2. Regular Expression Engine​

  • Parsing pattern syntax
  • Matching text against patterns
  • Handling quantifiers and groups

3. Mathematical Expression Evaluator​

Expression expr = new AddExpression(
    new NumberExpression(3),
    new MultiplyExpression(
        new NumberExpression(5),
        new NumberExpression(2)
    )
);

Benefits and Drawbacks​

Benefits:​

Flexibility​

  • Easy to extend with new expressions
  • Grammar can be modified or expanded
  • Rules can be changed without affecting clients

Separation of Concerns​

  • Grammar rules are encapsulated in classes
  • Context management is separated from interpretation
  • Easy to maintain and modify individual rules

Pattern Recognition​

  • Clear structure for handling language processing
  • Consistent approach to expression evaluation
  • Reusable components across similar problems

Drawbacks:​

Complexity​

  • Can become unwieldy with complex grammars
  • Many classes needed for even simple languages
  • Harder to maintain as grammar grows

Performance​

  • Recursive interpretation can be slow
  • Memory overhead from object creation
  • Not suitable for high-performance requirements

Best Practices​

Keep the Grammar Simple​

  • Focus on domain-specific rules
  • Avoid complex language features
  • Use parser generators for complex grammars

Use Composite Pattern​

  • Combine with Composite for tree structure
  • Maintain consistent interfaces
  • Share common functionality

Manage Context Carefully​

  • Keep context immutable when possible
  • Use thread-safe implementations
  • Document context requirements

Common Pitfalls​

Over-engineering​

  • Using the pattern for simple string operations
  • Creating unnecessary complexity
  • Implementing features that aren't needed

Poor Error Handling​

  • Not validating input properly
  • Ignoring edge cases
  • Insufficient error messages

Context Management​

  • Memory leaks from unmanaged context
  • Thread safety issues
  • Inconsistent state management

Composite Pattern​

  • Used together for building expression trees
  • Shares similar structure
  • Complements interpreter's functionality

Visitor Pattern​

  • Can be used to add operations to expressions
  • Helps separate algorithms from expression classes
  • Useful for implementing different interpretations

Iterator Pattern​

  • Used for traversing the expression tree
  • Helps in expression evaluation
  • Provides sequential access to elements

Conclusion​

info

The Interpreter Pattern shines when you need to define and evaluate a simple language or expression system. While it’s not suited for full-fledged programming languages (due to complexity and performance), it’s perfect for small, domain-specific grammars.

Remember that the Interpreter pattern is powerful but should be used judiciously. It's most effective when dealing with simple, domain-specific languages rather than full-featured programming languages.
