Microservices Architecture: Building Resilient and Scalable Systems

Introduction

In today's rapidly evolving digital landscape, organizations face unprecedented challenges in developing software systems that can adapt to changing business requirements, handle increasing loads, and maintain high availability. Traditional monolithic architectures—where all functionality exists in a single codebase—have proven inadequate for modern demands. This is where microservices-architecture has emerged as a transformative approach to software design and development.

Microservices architecture represents a paradigm shift in system-design-with-microservices, breaking down complex applications into smaller, independently deployable services that communicate through well-defined APIs. This architectural style has been adopted by tech giants like Netflix, Amazon, Uber, and Spotify, enabling them to build highly scalable-microservices systems that can evolve and grow with their business needs.

This comprehensive guide will explore the fundamental principles, benefits, challenges, and implementation strategies of microservices architecture. Whether you're a software architect, developer, or technical leader, this article will provide you with the knowledge needed to evaluate and potentially adopt this powerful architectural pattern for your organization's software systems.

Understanding Microservices Architecture

Definition and Core Concepts

At its core, microservices-architecture is an architectural style that structures an application as a collection of small, autonomous services modeled around a business domain. Each service is self-contained, implements a single business capability, and can be developed, deployed, and scaled independently.

Unlike monolithic applications where all functionality is tightly integrated into a single unit, microservices promote a modular-architecture approach where components are loosely coupled and highly cohesive. This modularity enables teams to work independently, choose the most appropriate technology stack for each service, and deploy changes without affecting the entire system.

Key Characteristics of Microservices

1. Single Responsibility: Each microservice should focus on doing one thing well, implementing a specific business function or process.

2. Autonomy: Services are independent entities that can be developed, deployed, and scaled without affecting other services.

3. Decentralization: Decision-making is distributed, allowing teams to make technology choices and design decisions appropriate for their specific service.

4. Domain-Driven Design: Services are organized around business capabilities rather than technical functions.

5. Smart Endpoints, Dumb Pipes: Services communicate through simple, lightweight protocols (like HTTP/REST or messaging) without complex middleware.

6. Infrastructure Automation: Continuous integration and deployment (CI/CD) pipelines automate the building, testing, and deployment processes.

7. Design for Failure: Services are designed to be resilient, anticipating potential failures in a distributed-system-design.

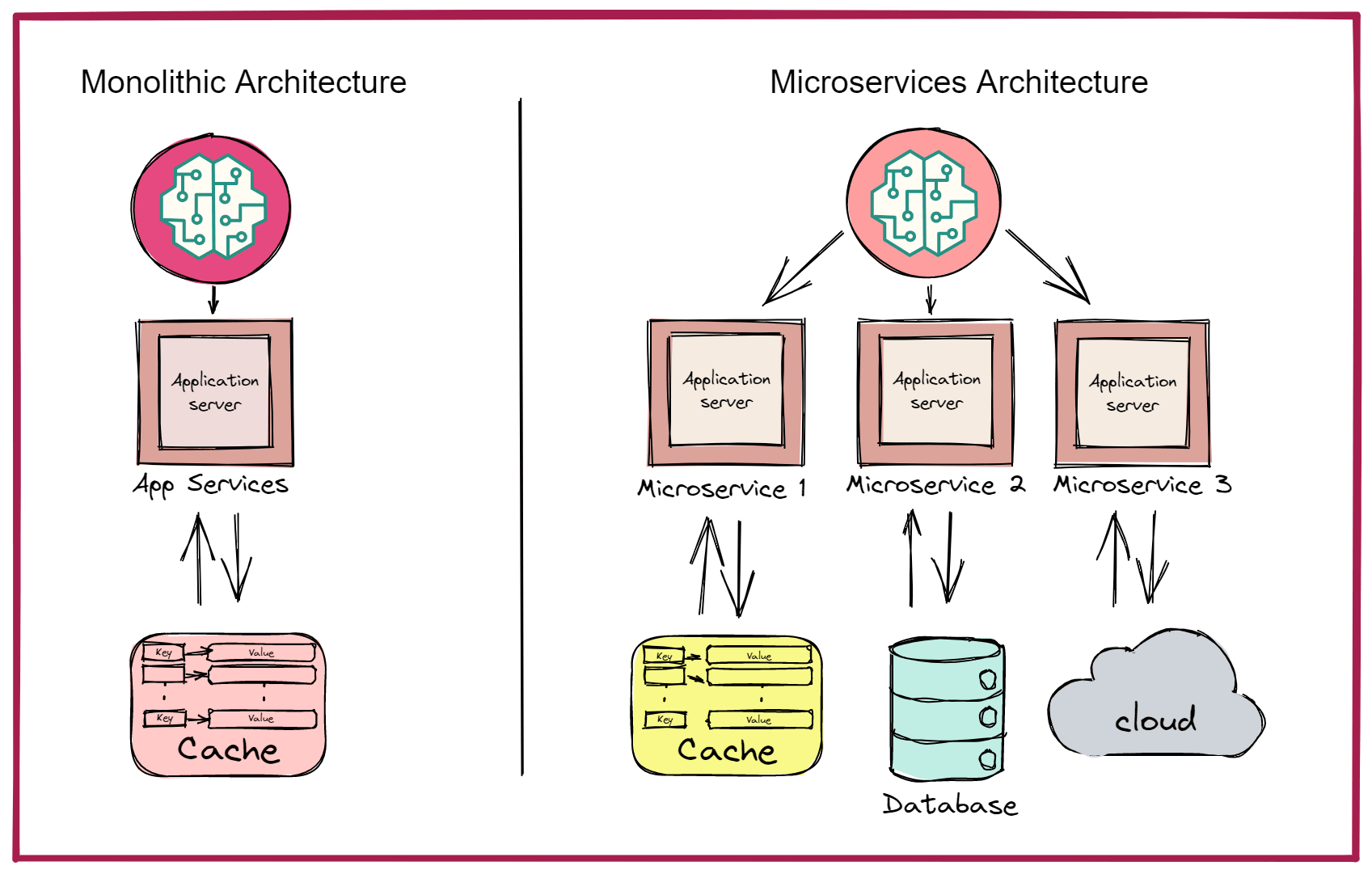

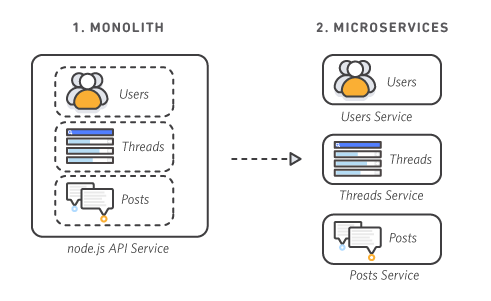

Microservices vs Monolithic Architecture

To better understand microservices, it's helpful to contrast it with traditional monolithic architecture:

Aspect	Monolithic Architecture	Microservices Architecture
Structure	Single, unified codebase	Multiple, independent services
Deployment	All-or-nothing deployment	Independent service deployment
Scaling	Entire application must scale	Individual services can scale
Technology	Single technology stack	Polyglot programming and persistence
Development	Large teams working on same codebase	Small teams owning individual services
Resilience	Single point of failure	Isolated failures with fallback mechanisms
Complexity	Simple initially but grows exponentially	Higher initial complexity, better long-term manageability

Core Principles of Microservices

The effectiveness of a microservices architecture depends on adherence to certain fundamental microservices-principles that guide its design and implementation:

1. Loose Coupling

Loose-coupling is perhaps the most critical principle in microservices architecture. It refers to the degree of dependency between services. In a loosely coupled system, services know as little as possible about each other, interacting only through well-defined interfaces or APIs.

Benefits of loose coupling include:

• Services can be modified without affecting others
• Independent deployment of services
• Technology diversity across services
• Easier testing and debugging
• Enhanced fault isolation

To achieve loose coupling, architects should:

• Define clear service boundaries
• Use asynchronous communication when appropriate
• Implement API gateways
• Avoid shared databases or direct database access across services
• Minimize synchronous dependencies between services

2. High Cohesion

While loose coupling focuses on minimizing dependencies between services, high cohesion ensures that related functionality is grouped together within a service. A cohesive microservice encapsulates all functionality related to a specific business capability.

High cohesion helps in:

• Simplifying service development and maintenance
• Creating more understandable and manageable codebases
• Minimizing cross-service changes for business functions
• Supporting the "single responsibility principle"

3. Service Independence

Each microservice should operate as an independent unit with:

• Its own codebase and version control repository
• Dedicated persistence mechanisms (if needed)
• Independent deployment pipelines
• Separate runtime environments
• Self-contained business logic

This independence enables teams to operate autonomously, choosing appropriate technologies and development practices for their specific service.

4. Resilience by Design

Software-resilience is a critical aspect of microservices architecture. In a distributed system, failures are inevitable—networks become unreliable, services crash, and dependencies become unavailable. Microservices embrace these realities through:

• Circuit breakers to prevent cascading failures
• Bulkheads to isolate failures
• Timeouts to avoid indefinite waiting
• Retry mechanisms with exponential backoff
• Fallback strategies when services are unavailable
• Health checks and self-healing capabilities

By designing for failure rather than trying to prevent it entirely, microservices architecture creates systems that can gracefully degrade functionality rather than suffering complete outages.

5. Decentralized Governance

Traditional architectures often impose standardized technology choices and development practices across an organization. Microservices, however, embrace decentralized governance, allowing teams to:

• Select appropriate technologies for their specific service
• Define service-specific development practices
• Make independent architectural decisions
• Choose appropriate data storage technologies
• Implement service-specific monitoring and operational tools

This approach recognizes that one-size-fits-all solutions are rarely optimal in complex systems.

Implementing Microservices Architecture

Successfully implementing microservices requires careful planning and consideration of several key aspects:

1. Service Decomposition Strategies

One of the most challenging aspects of adopting microservices is determining appropriate service boundaries. Several strategies can guide this decomposition:

a. Domain-Driven Design (DDD)

Domain-Driven Design provides a framework for identifying bounded contexts—coherent areas of functionality with clear interfaces to other contexts. These bounded contexts often translate well to microservice boundaries, aligning technical architecture with business domains.

Key DDD concepts relevant to microservices include:

• Bounded contexts
• Ubiquitous language
• Aggregates and entities
• Domain events
• Context mapping

b. Business Capability Analysis

Decomposing services around business capabilities rather than technical functions creates stable service boundaries that reflect the organization's core functions:

• Customer management
• Order processing
• Inventory management
• Payment processing
• Shipping and fulfillment
• Reporting and analytics

c. Decomposition by Data Cohesion

Another approach is to analyze data relationships and identify clusters of entities that are frequently accessed together. These data clusters often represent natural service boundaries.

2. Communication Patterns

In a distributed-system-design like microservices, services need to communicate effectively while maintaining independence. Several communication patterns are commonly used:

a. Synchronous Communication

• REST (Representational State Transfer): Lightweight, HTTP-based communication using standard methods (GET, POST, PUT, DELETE)
• gRPC: High-performance RPC framework using Protocol Buffers for efficient serialization
• GraphQL: Query language allowing clients to request exactly the data they need

b. Asynchronous Communication

• Message Queues: Point-to-point communication where a publisher sends a message to a specific consumer
• Publish-Subscribe: One-to-many communication where publishers send messages to topics, and subscribers receive relevant messages
• Event Streaming: Real-time processing of event streams, often using platforms like Apache Kafka or AWS Kinesis

Asynchronous communication offers several advantages for microservices:

• Temporal decoupling (services don't need to be available simultaneously)
• Natural load leveling during traffic spikes
• Better fault tolerance
• Supports event-driven architectures

3. Data Management in Microservices

Data management presents unique challenges in microservices architecture:

a. Database Per Service

Each microservice should have its own dedicated database to ensure independence and avoid tight coupling through shared data. This pattern:

• Allows services to choose appropriate database technologies
• Prevents cross-service database dependencies
• Enables independent scaling of data stores
• Isolates data-related failures

b. Data Consistency

With distributed databases, maintaining data consistency becomes challenging. Two common approaches are:

1. Eventual Consistency: Accept that data might be temporarily inconsistent but will converge to a consistent state over time.
2. Saga Pattern: Coordinate a sequence of local transactions across services, with compensating transactions to handle failures.

c. Data Duplication and Synchronization

Some data invariably needs to be shared across services. Strategies for handling this include:

• Data replication with change data capture (CDC)
• Event-driven updates
• Dedicated data synchronization services
• CQRS (Command Query Responsibility Segregation) with materialized views

Scaling Microservices

One of the primary benefits of microservices is the ability to create scalable-microservices systems. Several approaches enable effective scaling:

1. Horizontal Scaling

Horizontal scaling involves adding more instances of a service to handle increased load. This approach is particularly effective with stateless services that can be easily replicated across multiple servers or containers.

Key enablers for horizontal scaling include:

• Load balancing to distribute traffic
• Service discovery to track available instances
• Stateless service design
• Automated deployment and provisioning

2. Functional Decomposition

As load increases, monolithic services can be further decomposed into smaller, more specialized services. This decomposition allows for:

• More granular scaling based on specific functional requirements
• Better utilization of resources
• Improved performance for critical functions

3. Caching Strategies

Strategic caching reduces load on backend services and improves response times:

• Client-side caching
• API gateway caching
• Service-level caching
• Distributed caching solutions (Redis, Memcached)
• Content Delivery Networks (CDNs) for static assets

4. Auto-scaling

Modern cloud platforms support automatic scaling based on metrics like:

• CPU utilization
• Memory usage
• Request rates
• Response times
• Queue depths

Auto-scaling ensures optimal resource utilization while maintaining performance during variable load conditions.

Ensuring Resilience in Microservices

Software-resilience is critical in microservices architectures. Several patterns and practices enhance system reliability:

1. Circuit Breaker Pattern

The circuit breaker pattern prevents cascading failures by:

1. Monitoring for failures in dependent services
2. Tripping open when failure thresholds are exceeded
3. Redirecting requests to fallback mechanisms
4. Periodically allowing test requests to check if the service has recovered

Tools like Netflix Hystrix, Resilience4j, and Istio implement circuit breakers for microservices.

2. Bulkhead Pattern

Named after compartments in ship hulls that prevent sinking, bulkheads isolate components to contain failures:

• Thread pool isolation
• Process isolation
• Client-based bulkheads
• Server-side bulkheads

3. Health Monitoring and Self-healing

Robust microservices implementations include:

• Comprehensive health checks
• Automated instance replacement
• Service restart mechanisms
• Proactive problem detection
• Chaos engineering practices to identify weaknesses

4. Distributed Tracing

In complex microservices architectures, tracking requests across multiple services is essential for troubleshooting. Distributed tracing solutions like Jaeger, Zipkin, or AWS X-Ray provide:

• End-to-end visibility into request flows
• Latency analysis across service boundaries
• Bottleneck identification
• Error correlation across services

DevOps and Microservices

Microservices and DevOps practices are naturally complementary. Effective software-engineering-microservices implementations leverage several key DevOps practices:

1. Continuous Integration and Continuous Deployment (CI/CD)

Automated CI/CD pipelines are essential for managing the complexity of multiple microservices:

• Automated building and testing of services
• Consistent deployment processes
• Deployment orchestration across services
• Rollback capabilities
• Deployment strategies (canary, blue-green, rolling updates)

2. Infrastructure as Code (IaC)

IaC tools like Terraform, AWS CloudFormation, or Pulumi enable:

• Consistent environment provisioning
• Version-controlled infrastructure
• Reproducible deployments
• Self-documenting infrastructure
• Automated scaling

3. Containerization and Orchestration

Containers provide consistent runtime environments for microservices, while orchestration platforms manage deployment and scaling:

a. Containers

• Docker for packaging applications and dependencies
• Standardized deployment units
• Consistent environments across development and production
• Efficient resource utilization

b. Orchestration

• Kubernetes for container orchestration
• Service discovery and load balancing
• Automated scaling
• Health monitoring and self-healing
• Declarative configuration

4. Monitoring and Observability

Comprehensive monitoring is critical for distributed systems:

• Metrics collection and visualization
• Centralized logging
• Distributed tracing
• Anomaly detection
• Alerting and notification systems

Popular observability tools include Prometheus, Grafana, ELK Stack (Elasticsearch, Logstash, Kibana), and cloud-native monitoring solutions.

Challenges and Considerations

While microservices offer significant benefits, they also present challenges that organizations should consider:

1. Increased Operational Complexity

Managing dozens or hundreds of services is inherently more complex than managing a single application:

• More components to monitor and maintain
• Complex deployment orchestration
• Distributed system debugging
• Network management and security
• Resource allocation across services

2. Distributed System Challenges

Microservices introduce inherent distributed system challenges:

• Network latency and reliability issues
• Distributed data management
• Eventual consistency
• Distributed transaction handling
• Service choreography and orchestration

3. Organizational Challenges

Conway's Law suggests that system design mirrors organizational communication structures. Successful microservices implementation often requires:

• Restructuring teams around services or business capabilities
• Changing governance models
• Shifting cultural mindsets
• New collaboration patterns
• Updated skill requirements

4. When Microservices Might Not Be Appropriate

Despite their benefits, microservices aren't always the right choice:

• Small applications with limited complexity
• Teams without DevOps maturity
• Situations requiring strict transactional consistency
• Projects with severe time constraints
• Organizations without automation infrastructure

Real-World Implementation Examples

1. Netflix

Netflix's journey to microservices is one of the most well-documented examples:

• Migrated from monolithic DVD rental system to streaming platform
• Decomposed around business capabilities
• Created extensive tooling (Hystrix, Eureka, Zuul)
• Implemented chaos engineering (Chaos Monkey)
• Built resilient architecture for global streaming

2. Amazon

Amazon's transformation to microservices enabled its massive scale:

• Decomposed monolithic retail platform
• Implemented "two-pizza teams" (teams small enough to be fed by two pizzas)
• Created internal service APIs
• Developed AWS cloud services based on internal needs
• Achieved independent scaling of services

3. Uber

Uber evolved from a monolith to microservices to support global expansion:

• Geographically distributed microservices
• Domain-driven service boundaries
• Event-driven architecture
• Comprehensive observability infrastructure
• Custom service mesh for communication

Getting Started with Microservices

Organizations looking to adopt microservices should consider these steps:

1. Start Small

Begin with a bounded context or new application rather than attempting to rewrite an entire monolith:

• Choose a non-critical business function
• Implement 2-3 microservices initially
• Develop necessary supporting infrastructure
• Learn from this initial implementation
• Gradually expand scope based on lessons learned

2. Establish Foundational Capabilities

Before scaling microservices, ensure these foundational elements are in place:

• Automated deployment pipelines
• Service discovery mechanisms
• Monitoring and observability infrastructure
• API management
• Authentication and authorization frameworks

3. Focus on Culture and Organization

Technical architecture alone isn't sufficient for success:

• Form cross-functional teams aligned with services
• Establish clear service ownership
• Develop a DevOps culture
• Create inner-source practices for sharing code and knowledge
• Invest in training and skill development

4. Incremental Migration Strategies

When migrating from monoliths to microservices, consider these approaches:

• Strangler pattern (gradually replacing functionality)
• Domain-by-domain migration
• New features as microservices
• Parallel implementations with traffic routing
• Decomposition through refactoring

Conclusion

info

Microservices-architecture represents a powerful approach to building complex, resilient, and scalable software systems. By embracing principles of loose-coupling, modular-architecture, and distributed-system-design, organizations can create systems that evolve with changing business needs while maintaining reliability and performance.

The journey to microservices is not without challenges—increased operational complexity, distributed system concerns, and organizational changes all require careful consideration. However, with appropriate planning, incremental adoption, and focus on core principles, microservices can deliver significant benefits in terms of agility, scalability, and resilience.

As software-engineering-microservices practices continue to evolve, organizations that successfully implement this architectural style position themselves to respond more effectively to market changes, scale efficiently with growth, and build more resilient systems capable of withstanding the inevitable failures that occur in complex environments.

Whether you're just beginning to explore microservices or looking to refine an existing implementation, focus on the fundamental principles, start small, build foundational capabilities, and continuously learn and adapt as your architecture evolves.
