Understanding the Composite Pattern

The Composite Pattern is one of the most powerful structural design patterns that allows you to compose objects into tree structures and then work with these structures as if they were individual objects. This pattern is particularly useful when you need to implement a part-whole hierarchy and want clients to treat individual objects and compositions uniformly.

What is the Composite Pattern?

The Composite Pattern enables you to create hierarchical tree structures of objects where individual objects and compositions of objects are treated identically. Think of it as creating a tree-like structure where both leaves (individual objects) and branches (compositions) implement the same interface.

Key Components

1. Component: The interface or abstract class declaring the common operations for both simple and complex objects.
2. Leaf: Represents individual objects that have no children.
3. Composite: Represents complex objects that can have children.
4. Client: Manipulates objects through the Component interface.

Real-World Example

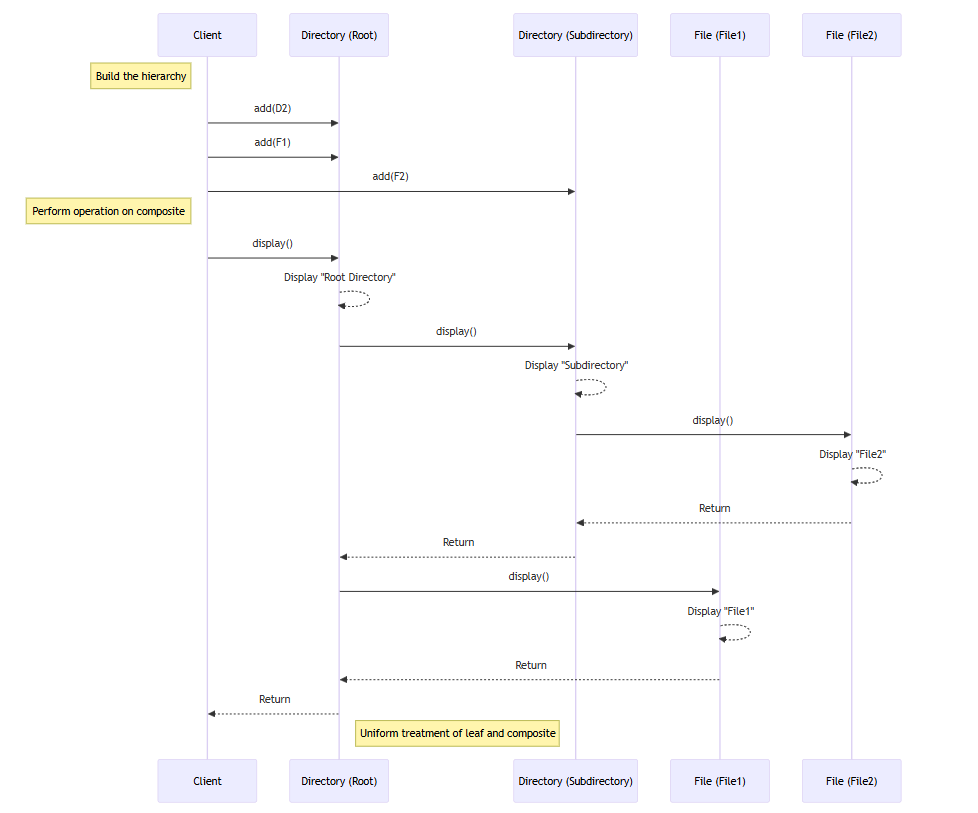

Let's consider a file system structure where we have files and directories. Both files and directories are treated as file system items, but directories can contain other items while files cannot.

// Component
public abstract class FileSystemItem {
    protected String name;

    public FileSystemItem(String name) {
        this.name = name;
    }

    public abstract void display(String indent);
    public abstract long getSize();
}

// Leaf
public class File extends FileSystemItem {
    private long size;

    public File(String name, long size) {
        super(name);
        this.size = size;
    }

    @Override
    public void display(String indent) {
        System.out.println(indent + "File: " + name + " (" + size + " bytes)");
    }

    @Override
    public long getSize() {
        return size;
    }
}

// Composite
public class Directory extends FileSystemItem {
    private List<FileSystemItem> contents = new ArrayList<>();

    public Directory(String name) {
        super(name);
    }

    public void addItem(FileSystemItem item) {
        contents.add(item);
    }

    @Override
    public void display(String indent) {
        System.out.println(indent + "Directory: " + name);
        for(FileSystemItem item : contents) {
            item.display(indent + "  ");
        }
    }

    @Override
    public long getSize() {
        return contents.stream()
                      .mapToLong(FileSystemItem::getSize)
                      .sum();
    }
}

When to Use the Composite Pattern

The Composite Pattern is particularly useful in scenarios where:

• You need to represent part-whole hierarchies of objects
• Clients should be able to treat individual objects and compositions uniformly
• The structure of objects is dynamic and can change at runtime

Common Use Cases

• GUI widgets and containers
• File system structures
• Organization hierarchies
• Menu systems with sub-menus
• Graphics systems with grouped objects

Benefits and Considerations

Advantages

• Simplified Client Code: Clients can treat complex and simple elements uniformly
• Flexibility: Easy to add new types of components
• Natural Representation: Hierarchical structures are represented naturally
• Code Reusability: Common operations can be defined at the highest level

Potential Drawbacks

• Design Complexity: Can make the design overly general
• Difficulty in Restricting Components: May be challenging to restrict what can be added to composites
• Performance Overhead: Tree traversal can be expensive for deep hierarchies

Implementation Best Practices

• Clear Component Interface

public interface Component {
    void operation();
    boolean isComposite();
    void add(Component component);
    void remove(Component component);
    Component getChild(int index);
}

• Type-Safe Composite

public class SafeComposite implements Component {
    private List<Component> children = new ArrayList<>();

    @Override
    public boolean isComposite() {
        return true;
    }

    @Override
    public void add(Component component) {
        if (component != null) {
            children.add(component);
        }
    }
}

• Error Handling

public class Leaf implements Component {
    @Override
    public void add(Component component) {
        throw new UnsupportedOperationException(
            "Cannot add to a leaf"
        );
    }
}

Performance Optimization Tips

• Caching: Cache calculated values for composite operations
• Lazy Loading: Load child components only when necessary
• Memory Management: Implement cleanup methods for large hierarchies
• Batch Operations: Implement batch processing for operations on multiple components

Common Pitfalls and Solutions

Pitfall 1: Maintaining References

public class Component {
    private Component parent;

    protected void setParent(Component parent) {
        this.parent = parent;
    }

    protected Component getParent() {
        return parent;
    }
}

Pitfall 2: Deep Copy Operations

public interface Component extends Cloneable {
    Component deepCopy();
}

Conclusion

---

info

The Composite Pattern is a powerful tool for handling hierarchical structures in object-oriented design. While it requires careful consideration during implementation, its benefits in terms of code organization and maintainability make it an invaluable pattern for many applications.

By following the best practices and considering the implementation details discussed in this guide, you can effectively use the Composite Pattern to create flexible and maintainable hierarchical structures in your applications.
